Single Reduced Cold-Rolled Tinplate

Tin-plated steel plate, commonly known as tinplate is a steel product with a stampable thin steel plate as the base, tin plating on the surface, and multiple protective films. It has the characteristics of corrosion resistance, non-toxic, odorless, glossy surface, light weight, high strength, easy to print, easy to weld and process, and has strong adaptability to ambient temperature. Single cold-reduced tinplate can be supplied with either a bright, silver, stone or matt finish, and the finish required shall be specified at the time of ordering.

Bill@sdzptg.com

+86 15621896993

Product Description

Single Reduced Cold-Rolled Tinplate Description

Tin-plated steel plate, commonly known as tinplate is a steel product with a stampable thin steel plate as the base, tin plating on the surface, and multiple protective films. It has the

characteristics of corrosion resistance, non-toxic, odorless, glossy surface, light weight, high strength, easy to print, easy to weld and process, and has strong adaptability to ambient

temperature. Single cold-reduced tinplate can be supplied with either a bright, silver, stone or matt finish, and the finish required shall be specified at the time of ordering. Single reduced

cold-rolled tinplate is generally specified in nominal thicknesses that are multiples of 0,005 mm, from 0,150 mm up to and including 0,600 mm. It is widely used in food, beverage, grease,

chemical, paint, paint, aerosol cans, bottle caps and many other daily necessities packaging, such as a variety of beverage cans, food cans, beer bottle caps and so on.

Product Parameters

Product Name	Electrolytic Tinplate (ETP)
Thickness	0.18Mm-0.50mm
Width	260Mm-980mm
Length	Support customization
Tin Coating	General: 2.8g or 5.6g, can be produced according to your needs
Substrate Type	MR / SPCC / L / D
Reference Standard	GB/T 2520, JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203

Surface State of Tinplate

Substrate Type	Introduction
MR	The most general steel, steelmaking impurity residue less, excellent mechanical properties and corrosion resistance
L	Used for the production of acidic contents (oranges, yellow peaches, pineapples, etc.), and the inner surface of the food cans for iron high corrosion resistance tinplate substrate steel, such tinplate is often calledKPlate
D	Used to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial
SPCC	Chinese characteristics, using ordinary hot rollingSPHCProduces, usually used for miscellaneous tank purposes.

Coating Weight

Classification	Representation of Tin Coating Weight	Tin Plating Nominal Weight (g/m2)	Minimum Average Tin Plating Weight (g/m2)
Equal Tin Plating (E)	1.1/1.1	1.1/1.1	1.8
	2.2/2.2	2.2/2.2	4.0
	2.8/2.8	2.8/2.8	5.0
	5.6/5.6	5.6/5.6	10.5
Differentiated Tin Plating (D/A)	2.2/1.1	2.2/1.1	2.0/0.9
	2.8/1.1	2.8/1.1	2.25/0.9
	5.6/1.1	5.6/1.1	5.05/0.9
	2.8/2.2	2.8/2.2	2.25/2.0
	5.6/2.2	5.6/2.2	5.05/2.0
	5.6/2.8	5.6/2.8	5.05/2.25

Chemical Composition

No.	C	Si	Mn	S	P	Cu	Ni	Cr	Mo
D	0.12	0.03	0.6	0.05	0.02	0.2	0.15	0.1	0.05
L	0.13	0.03	0.6	0.05	0.15	0.03	0.04	0.06	0.05
MR	0.13	0.03	0.6	0.05	0.2	0.2	0.2	0.1	0.05

Mechanical Properties & Applications

Standard Name	Nominal Hardness HR30TS	Strong Yield MPA	Scope of Application
T-1	49	230 /-50	Drawing requirements, drawn ironing cans, nozzles, nozzles, closures
T-2	53	245 /-50	Ring and plug, dome, closure, shallow pull and special tank parts
T-2.5	55	260 /-50	Battery cell, small can cover and body
T-3	57	275 /-50	Cans and cans, large diameter caps, crown caps
T-3.5	59	290 /-50	Can body, closure and crown lid
T-4	61	340 /-50	Can body, closure and crown lid
T-5	65	480 /-50	Cans and cans

Ordering Notes

The ordering elements for tin plating generally include: standard grade (including steel grade code, annealing method and other information such as MR T-3 CA), size (the default order is

thickness * width * length, tin plating amount ((different thickness plating) Tin needs to add A/D as the marking line mark, if not, no marking line will be marked), surface, order quantity, etc.

When ordering tin plating, please confirm with our sales staff the end use, such as canbody, ends, twist off caps, crown cork, EOE, etc., as well as the contents, special contents such as

milk powder, high protein food, mushrooms, fruits, etc.;

Professional Showcase · Safe Shipping

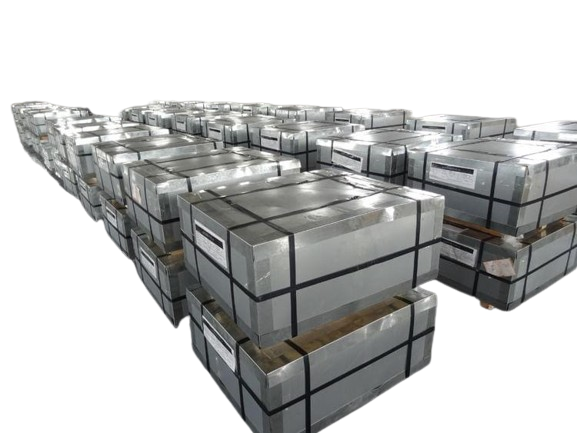

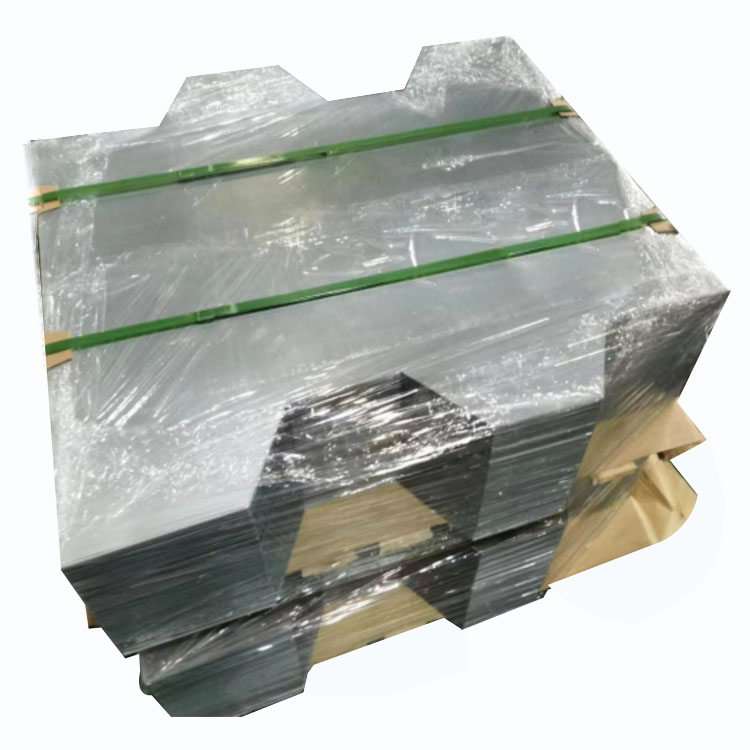

In the shipping process, we strictly adhere to standardized operating procedures: we employ customized packaging solutions that are moisture-proof, scratch-proof, and deformation-proof, and each batch of products is reinforced according to international shipping standards. Whether it's full container export or domestic dedicated truck delivery, we achieve end-to-end visualized management from warehousing, packaging, labeling to logistics tracking, ensuring that goods are delivered safely and on time to customers worldwide.
